Haomei aluminiumaluminium embossed sheet

aluminium embossed sheet

A Stucco Embossed aluminum sheet finish is achieved by processing the natural mill finish material through embossing rollers. This provides a surface, which diffuses light reducing reflectivity and glare. It is used for applications on decorative effects, or to reduce surface reflectivily. As aluminium embossed sheet is both a stable and durable material, it provides excellent service as a roofing or cladding without the need of any protective coating. Aluminiums highly reflective surface will dull to a uniform patina finish with prolonged exposure to the sun, wind and rain bome sand and dirt. Changes in appearance will be consistent along an elevation.

Embossed aluminum sheet, after the process of embossing, cutting, oxidation will form the surface with a dense layer of aluminum oxide protective film. And It has obvious below advantages such as acid-corrosion-resistance, long-lasting shine, beautiful patterns, anti-corrosion performance and stability, strong adhesion, impact resistance, non-toxic side effects, safety and environmental protection. With above charicteristics, surface of stocco embossed aluminium is clean, shiny. Besides, the electro-oxidation can effectively remove residual oil and manual handling of fingerprints.

Embossed aluminium sheet are widely used in refrigerator, solar heat reflectors, decorative aluminum products, lamps, bags, disinfection box, air conditioning, ventilation ducts, indoor & outdoor decoration, machinery and equipment housing and other industries. Embossed finish can enhance the thickness and strength of aluminum.

01) Alloy: A1050, A1060, A1070, A1100, A3003, A3105 etc
02) Aluminum thickness: 0.25mm~2.0mm
03) Aluminum standard width: 1200mm Max width: 1500mm

The embossed oxidized panel is beautiful, with thickness from 0.25mm to 2.0mm, while the maximum width is 1500mm, after pattern embossed, the thickness could be 0.08 to 0.25mm more. Additionally, we offer processing service for anozdizing aluminum sheet, which could further strength sheet’s ability of anti-corrosion.

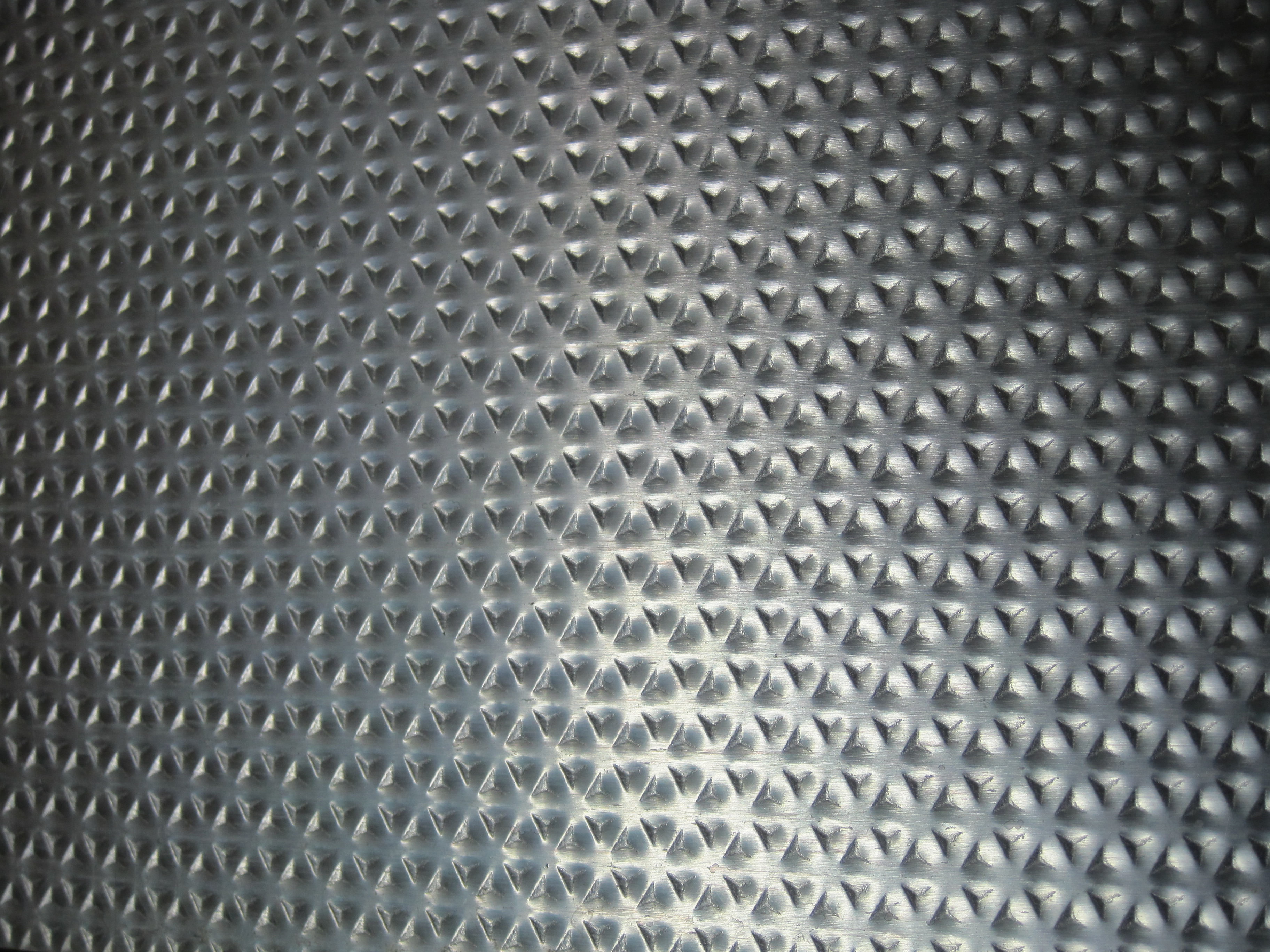

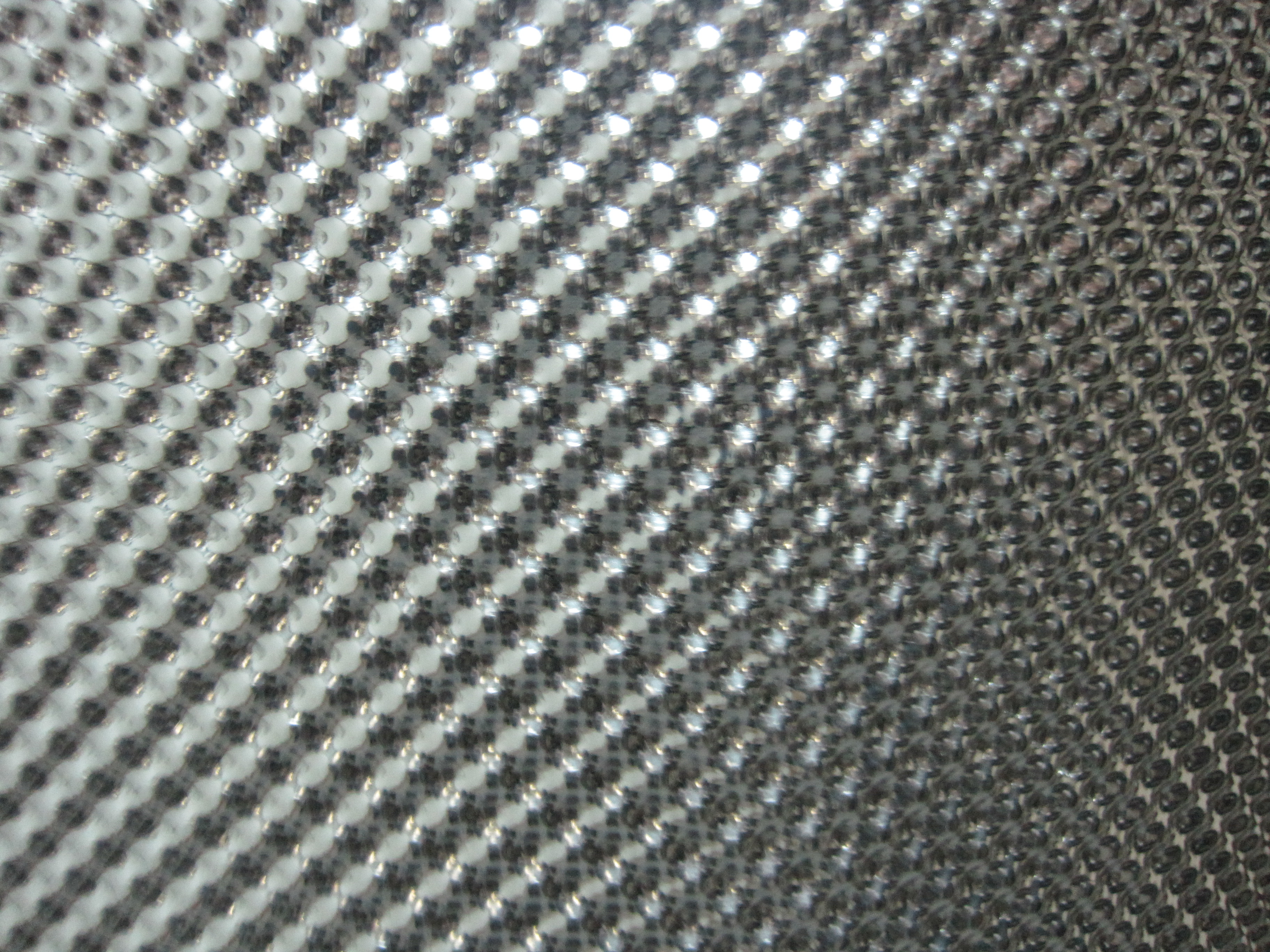

Pattern: Rhombic veins, orange peel veins, diamond veins, five-rib veins etc.

Pattern: Rhombic veins, orange peel veins, diamond veins, five-rib veins etc.

Product Specifications

Aolly Temper
(Base materal)
Specification(mm)
Thickness
(Base material)
Width Length Embossing  depth Surface  Treatment
1050 1100  1060 1070  3003 3105 O, H12, H14, H16,  H18, H22, H24,  H26, H32 0.25~2.0 ≤1500 As per customer’s
requirements
0.08~0.25 Mill Finish,bright finish,  anodized, color coated
Tolerance
Thickness
(Base material)
Thickness Embossing
depth
Width Length Diagonal
0.25-0.50 0-0.05 +/-0.01 +/-0.5 +/-1.0 +/-1.5
>0.50-2.0 0-0.10 +/-0.02 +/-1.0 +/-1.5 +/-2
Remark: We can produce as per customers’special requirements

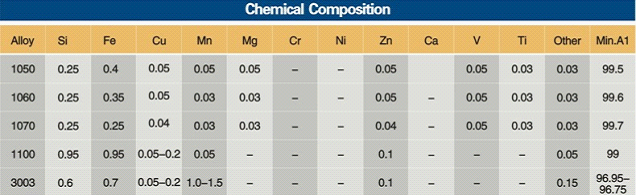

Chemical Composition

d

Mechanical Performance

Embossed aluminium sheet's mechanical performance in room temperature should accord with GB/T8544-1997
Appearance Clear Texture, Smooth edges no burrs. There can't be defects such as split, erosion and holes on the surface which effect using.

Application Instruction

Stucco aluminum coils/sheets are usually used in refrigerators, air conditioners and refrigeration equipment, and pipe insulation, the products have good thermal conductivity, heat dissipation due to the special nature of the pattern. Such mateirals are widely used in the fields of refregerator, wine cabinet, solar panel, decorative aluminium product, linghting fixture, lighting box, sanitizer, kitchen cabinet and central air conditioning system.At present, in the refrigeration industry, the 3003 series of rust-proof aluminum coil are widely used; In pipe insulation and packaging 1000 series are widely used.

product

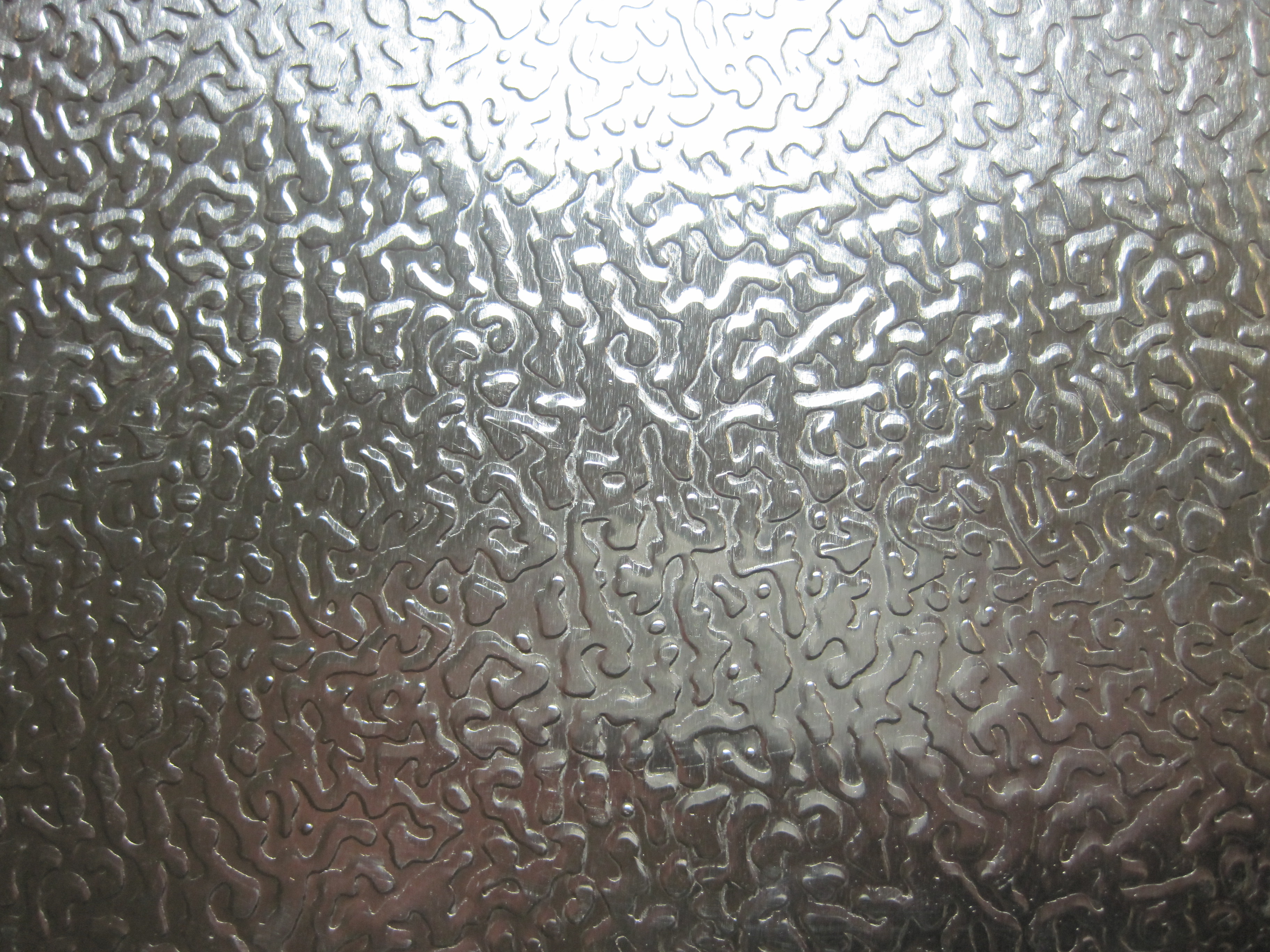

stucco orange skin Stucco Embossed aluminium sheet
Stucco Embossed aluminium sheet
Packing 2.jpg
aluminium embossed sheet Packing 2.jpg
aluminium embossed sheet Packing 2.jpg
aluminium embossed sheet Packing 2.jpg
Packing 2.jpg
Packing 2.jpg
Our product
